Qt6-15 High Automaticity Paver Brick Machine
Qt.6-15块制造机器Description1.QT6-15 brick机器工作原则链自动送料板,手动参与,振动箱在液压电机两侧由高频,低频布,加压,另一种双油压压力,以及生产质量良好,高密度块
Qt6-15 Fully Automatic Concrete Hollow Paving Interlocking Block Brick Making Machine
闵。订单/参考FOB价格 | |
---|---|
1 SET | 3.9800USD |
Port: | Ningbo China |
---|---|
Production Capacity: | 50 Sets Per Month |
付款条件: | L/C, T/T |
Certification: | CE, ISO |
---|---|
Customized: | 不定制 |
自动等级: | Automatic |
类型: | Hydraulic Shock |
成型期: | 15-20s. |
主机的重量: | 9.8t |
Basic Info
Model NO.: QT6-15Workshop Area: 260 M2Host Machine Power: 37kwVibration Force: 100knMixer Model: Js750Voltage: 380V/415VLabour: 6-10Dimension: 3500*2300*2930mmTrademark: Raytone MachineryTransport Package: Sea TransportationSpecification: 3500*2300*2930mmOrigin , ChinaHS Code: 84748090
Product Description
Qt.6-15块制造机器Description1.QT6-15 brick机器工作原则连锁自动送料板,手动参与,振动箱在液压电机两侧推动,由高频,低频布,加压,另一种双油压压力,以及生产质量良好,高密度块。2。QT6-15砖块机器配置(1)JS500说明:混合沙子的原料,松开石材,水泥,et等:JS500混合器:18.5KWFEED容量:800LWISCHAGE容量:500LOVERALL尺寸(mm):3030 * 2300 * 2680mm
(2)主机砖机:通过模具压制混凝土砌块。中国知名品牌液压站和成熟的机器制造技术使我们的机器非常稳定工作;具有热处理的线性切割模具,使模具更长的寿命;我们正在做的工作精心专制和仔细的工作行动使得美丽的砖机Outlooking。(3)手动块推车功能:手推车用于将托盘上的块运输到存储区域。每台机器都配备了Twolleys。3..QT6-15 brickMachine specifications
主要技术参数 | |||||
(1) | Dimension of host machine | 4.000*1800*2800mm | (6) | 主机电力 | 30kW. |
(2) | 成型期 | 15-20s. | (7) | Vibration force | 40-50kN. |
(3) | 竹托盘尺寸 | 1010 * 550 * 25mm | (8) | 混音器模型 | JS500 |
(4) | Weight of the host machine | 5.5t. | (9) | Voltage | 3.8.0V/415V |
(5) | workshop area | 250-300平方米 | (10) | labour | 7-8 |
4.Qt6-15砖砌Mahcine prodcuctivity
生产能力 | |||||
Size(LxWxH) | PCS /模具 | PCS / HR. | PCS / 8小时 | pcs/month | |
(1) | 400 * 250 * 200 | 3. | 4.50-540 | 3600-4320. | 108000-129600. |
(2) | 400 * 200 * 200 | 4. | 600-720. | 4.8.00-5760 | 144000-172800. |
(3) | 400 * 150 * 200 | 6. | 900-1080 | 7200-8640 | 216000-259200. |
(4) | 400 * 100 * 200 | 8. | 1200-1440 | 9600-11520 | 288600-345600 |
(5) | 230 * 110 * 70 | 24. | 4320. | 3.4.560 | 1036800. |
(6) | 200 * 100 * 60 | 16. | 2880 | 23040 | 691200 |
(7) | 200 * 163 * 60 | 8. | 1440 | 11520 | 3.4.5600 |
5.QT6-15 brick Machine aRea需要:Theoretical workshop requirements: 50 square meters, need 6-8 workers, one operates the mixer and feeds material, one operates the host machine, and two workers transport the blocks. The office, curing area, stacking area are arranged according to your specific conditions.6。After-sale Service我们拥有自己的技术人员队伍为自动砖机的机器安装,以及一些半自动或手动块机,通常用户可以操作机器,如果需要技术人员,我们也可以满足需求。我们在售后服务后和之前提供7 * 24小时的在线服务。7。我们的优势(1)采用超强钢和特殊焊接技术,它具有强大和高抵抗振动;(2)采用进口电器,密封件和液压元件的零件,如Simens Motor,Simens Plc,Mitusbish PLC或中国famous brand motors, Switches, etc. the equipment’s comprehensive performance is stable and reliable;(3) our company focus on the technology of gearbox, which is key point of the brick machine, which can improve the productivity speed and block quantity.

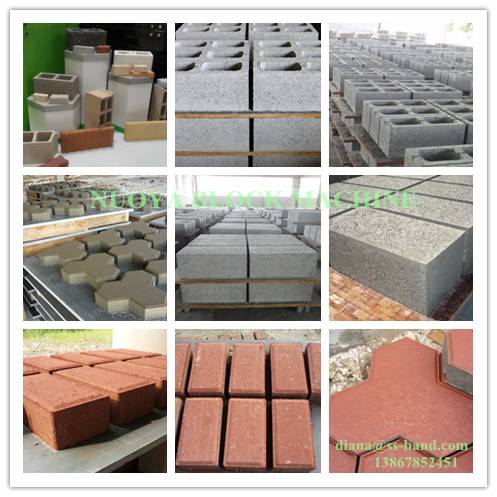

机器生产摊铺机和块
